Features & Benefits

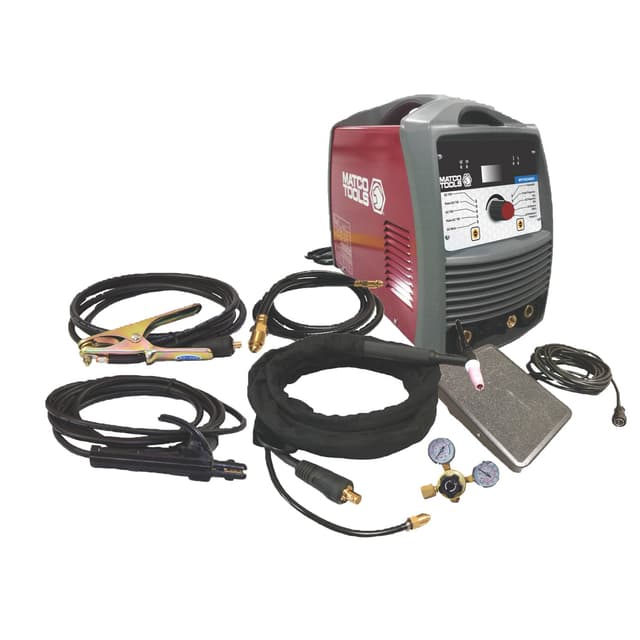

- Dual voltage, inverter powered AC and DC TIG, Pulse TIG and DC Stick welder
- DC Stick mode allows for stick welding up to 160A (steel, stainless steel, and aluminum)
- AC TIG welds non-ferrous metals such as aluminum
- DC TIG welds steel and stainless steel
- Equipped with advanced TIG capabilities including Pulse, AC Arc frequency control, AC Arc balance control, and auto balance/frequency control with simple face controls
- Includes 200 (230V)/125 (120V) Amp Inverted powered TIG/Stock welder, TIG torch, 8' ground clamp and cable, gas hose, dual gauge regulator, electrode holder and cable, and remote foot pedal
Features & Benefits

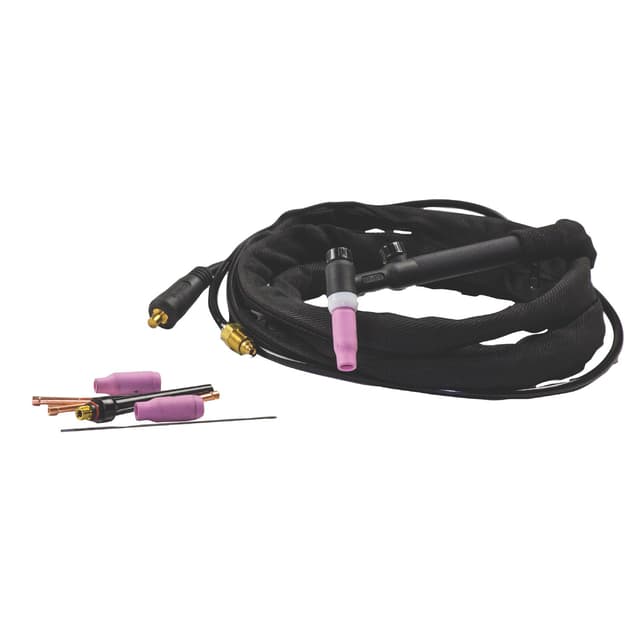

- 35-70 style twist-lock connection allows for direct quick connection without the use of tools
- V-style torch features a gas on/off valve mounted directly on the torch for quick and convenient control of shielding gas
- Includes 3 nozzle and collet sizes for use with a variety of tungsten sizes
- Full-length fabric cover enclosure protects the weld cable and gas line from damage
- Ideal for light fabrication, welding repair and maintenance operations
- For use on steel or stainless steels
Features & Benefits

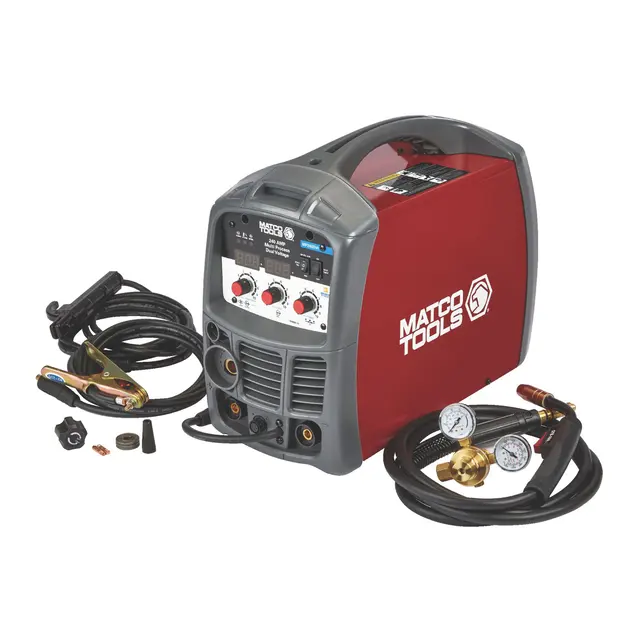

- Dual voltage, portable DC inverter wire feed welder capable of welding with solid wire (with shielding gas) or with flux core wire
- Ready to accept MATEZFSG2 optional spool gun for welding aluminum
- Smooth DC stick capabilities and the ability to perform lift start DC TIG welding on steel and stainless steel materials with MATACTT1 optional TIG torch
- Capable of MIG welding 5/16" steel in a single pass when operating on 230V; use the included 120V adapter cord to run this unit off 120V AC power with single pass MIG welder capacity of 3/16"
- Leading edge inverter technology to provide high quality welds that are crisp, clean and consistent with plenty of power and will impress experienced welders
- Inverter technology is evident from the moment you take it out of the box, creating more welding power from a smaller transformer
- Welds between 24 gauge and 5/16" steel in a single pass; stick weld with electrode up to 1/8" with exceptionally smooth DC stick welding output; stick weld material such as steel, stainless steel, cast iron, hard facing and aluminum
- Typical applications include home/hobbyist, construction, auto repair, farm and ranch industrial application
Last Chance
Features & Benefits

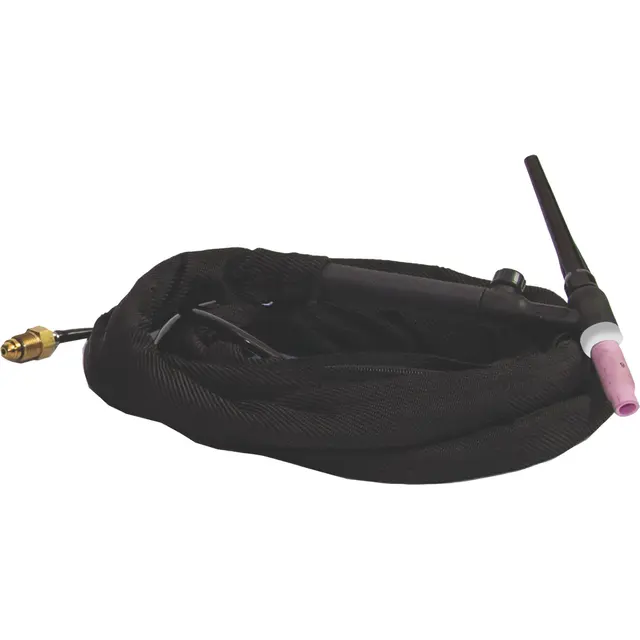

- Designed to operate with the MP140 and MP240 welders for DC lift start TIG welding on steels or stainless steels
- May also be used on other TIG welding units with Dinse 10-25 twist lock style weld terminals
- Ideal for light fabrication, welding repair and maintenance operations
- 10' long torch cable delivers the welding current and shielding gas to the arc
- Gas connection goes directly to the inert regulator/flow gauge connected to your bottle of shielding gas
- Three nozzles and three collets included
- Used to connect your source of shielding gas to the TIG torch
Features & Benefits

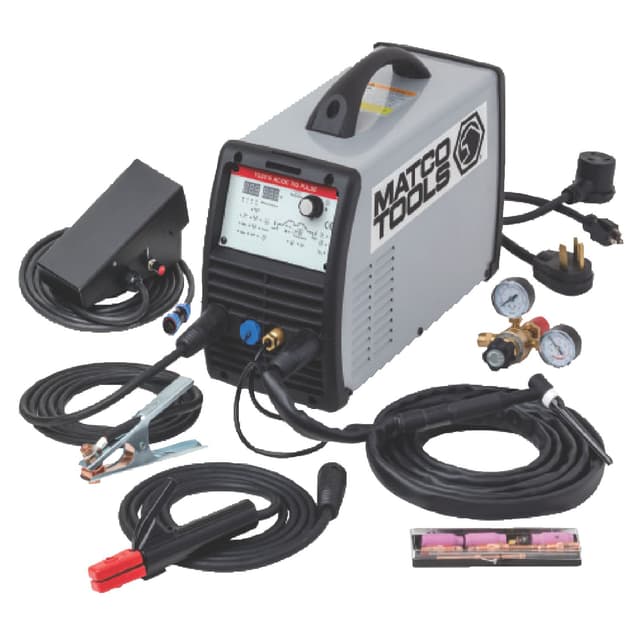

- 200 amps of AC/DC pulsed power for precision TIG welding of steel and aluminum alloy materials from thin #26 gauge to 1/4" single pass
- 110-240VAC input voltage range with power factor correction (PFC) circuit and dual NEMA plug cord sets allow maximum portability of unit for shop and field applications
- Adjustable power from 5-200 amps, pulse rate HF or LIFT ignition wave forms (3), frequency pre and post gas and slope
- Package includes pulse inverter #17 TIG torch 12.5', 200A work clamp, 200A electrode holder, foot pedal with trim potentiometer, dual-gauge gas regulator, AK-2 torch kit and operator manual
- 200 amps of MMA stick welding power for 3/32" - 3/16" rod electrodes with adjustable hot start arc force and low OCV protection circuit
Features & Benefits

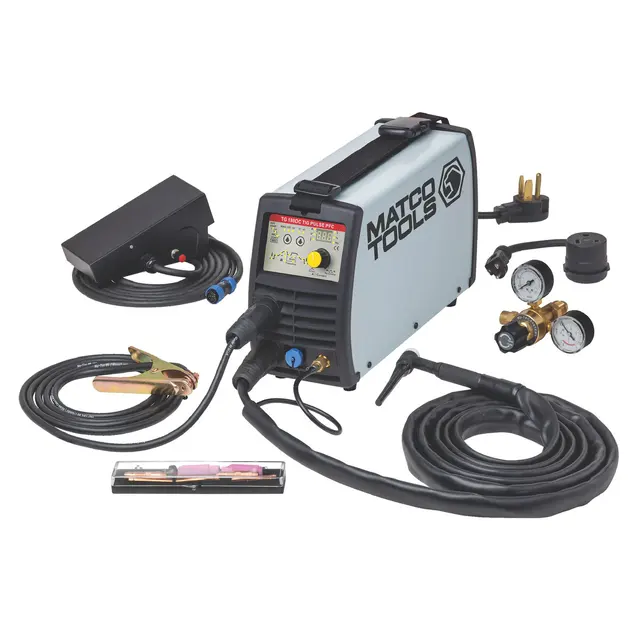

- The model TG180 is the choice of professionals, with 180 amps of DC power this unit is capable of TIG or MMA/stick welding all steel alloys from #20GA to 3/16"
- Versatile with dual 110-240V input capability and infinitely adjustable output power with optional pulse for controlled welds on thin-walled tube to standard plate materials including mild carbon, chromoly and stainless steel
- System features IGBT inverter power supply with epoxy sealed components and 0.99 efficiency PFC dual voltage circuit in a compact air-cooled cabinet with the highest duty-cycle rating in class
- Graphic digital control panel with LED welding parameter display, infinitely variable output power from 5-180 amps, lift-arc or HF start, adjustable pulse power
- Pre and post shield gas settings, auto over-temp & over-voltage protection and adjustable foot pedal control
- Package includes pulsed inverter power supply with dual voltage, SR17 TIG torch with quick-connect welding cable 12.5’, 200A work clamp with quick-connect welding cable 10’, 200 amp electrode holder with quick-connect welding cable 10’
- Comes with foot pedal control with trim potentiometer & 16’ direct-connect cable, 115-volt jump-power cord, dual-gauge gas regulator, AK-2 torch kit and operator manual
